import math
import random
import matplotlib.pyplot as plt
# --- MODEL CONFIGURATION (Based on Law's Example) ---
MN_LEVEL = 20 # s
MX_LEVEL = 40 # S
INITIAL_INV_LEVEL = 60
NUM_MONTHS = 120
# Costs
SETUP_COST = 32.0
INCREMENTAL_COST = 3.0
HOLDING_COST = 1.0
SHORTAGE_COST = 5.0
# Distributions
MEAN_INTERDEMAND = 0.1 # Mean time between demands (months)
MIN_LAG = 0.5 # Min delivery lag (months)
MAX_LAG = 1.0 # Max delivery lag (months)
# --- GLOBAL STATE VARIABLES ---
sim_time = 0.0
inv_level = 0
time_last_event = 0.0
# Statistical Accumulators
total_ordering_cost = 0.0
area_holding = 0.0
area_shortage = 0.0
time_level = [] # (time, inventory level) pairs for plotting
# Event List
# 1: Order Arrival
# 2: Demand
# 3: Inventory Evaluation (Periodic)
# 4: End Simulation
time_next_event = [0.0] * 5
next_event_type = 0
def initialize():
"""Initialize the simulation state."""
global sim_time, inv_level, time_last_event, total_ordering_cost
global area_holding, area_shortage, time_next_event
sim_time = 0.0
inv_level = INITIAL_INV_LEVEL
time_last_event = 0.0
total_ordering_cost = 0.0
area_holding = 0.0
area_shortage = 0.0
# Schedule initial events
time_next_event[1] = 1.0e30 # No order arriving initially (Infinity)
time_next_event[2] = sim_time + expon(MEAN_INTERDEMAND) # First demand
time_next_event[3] = 0.0 # First inventory evaluation happens at t=0
time_next_event[4] = float(NUM_MONTHS) # End of simulation
def timing():
"""Determines the next event type and advances the clock."""
global sim_time, next_event_type
min_time_next_event = 1.0e29
next_event_type = 0
# Determine the event type with the minimum time
for i in range(1, 5):
if time_next_event[i] < min_time_next_event:
min_time_next_event = time_next_event[i]
next_event_type = i
if next_event_type == 0:
print(f"Event list empty at time {sim_time}")
sys.exit(1)
# Advance the simulation clock
sim_time = min_time_next_event
def update_time_avg_stats():
global area_holding, area_shortage, time_last_event
time_since_last_event = sim_time - time_last_event
time_last_event = sim_time
# Calculate area for holding (if inventory > 0) or shortage (if inventory < 0)
if inv_level > 0:
area_holding += inv_level * time_since_last_event
elif inv_level < 0:
area_shortage += -inv_level * time_since_last_event
def order_arrival():
global inv_level, time_next_event
inv_level += amount
time_next_event[1] = 1.0e30
def demand():
global inv_level, time_next_event
demand_size = random_integer_demand()
inv_level -= demand_size
time_next_event[2] = sim_time + expon(MEAN_INTERDEMAND)
def evaluate():
global inv_level, total_ordering_cost, amount, time_next_event
if inv_level < MN_LEVEL:
amount = MX_LEVEL - inv_level
total_ordering_cost += SETUP_COST + (INCREMENTAL_COST * amount)
time_next_event[1] = sim_time + uniform(MIN_LAG, MAX_LAG)
time_next_event[3] = sim_time + 1.0
def report():
avg_ordering_cost = total_ordering_cost / NUM_MONTHS
avg_holding_cost = (HOLDING_COST * area_holding) / NUM_MONTHS
avg_shortage_cost = (SHORTAGE_COST * area_shortage) / NUM_MONTHS
total_avg_cost = avg_ordering_cost + avg_holding_cost + avg_shortage_cost
print("\n" + "=" * 40)
print(" SINGLE-PRODUCT INVENTORY SYSTEM")
print("=" * 40)
print(f"Policy (s, S) : ({MN_LEVEL}, {MX_LEVEL})")
print(f"Time Length : {NUM_MONTHS} months")
print("-" * 40)
print(f"Avg Ordering Cost : {avg_ordering_cost:10.2f}")
print(f"Avg Holding Cost : {avg_holding_cost:10.2f}")
print(f"Avg Shortage Cost : {avg_shortage_cost:10.2f}")
print("-" * 40)
print(f"TOTAL AVG MONTHLY COST : {total_avg_cost:10.2f}")
print("=" * 40 + "\n")
# --- HELPER FUNCTIONS (Random Variate Generators) ---
def expon(mean):
"""Returns an exponential random variate with mean 'mean'."""
return -mean * math.log(random.random())
def uniform(a, b):
"""Returns a uniform random variate between a and b."""
return a + random.random() * (b - a)
def random_integer_demand():
"""
1 w.p. 1/6, 2 w.p. 1/3, 3 w.p. 1/3, 4 w.p. 1/6
"""
u = random.random()
if u < 0.16667:
return 1
elif u < 0.5:
return 2
elif u < 0.83333:
return 3
else:
return 4

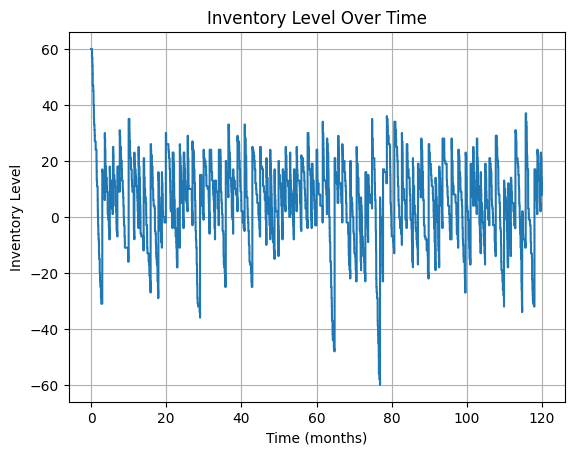

def plot_inventory_level():
times, levels = zip(*time_level)
plt.step(times, levels, where='post')
plt.xlabel('Time (months)')
plt.ylabel('Inventory Level')
plt.title('Inventory Level Over Time')
plt.grid()
plt.show()
# --- MAIN EXECUTION ---
if __name__ == "__main__":
initialize()
while True:
timing()
update_time_avg_stats()
time_level.append((sim_time, inv_level))
if next_event_type == 1:
order_arrival()
elif next_event_type == 2:
demand()
elif next_event_type == 3:
evaluate()
elif next_event_type == 4:
report()
break
plot_inventory_level()
